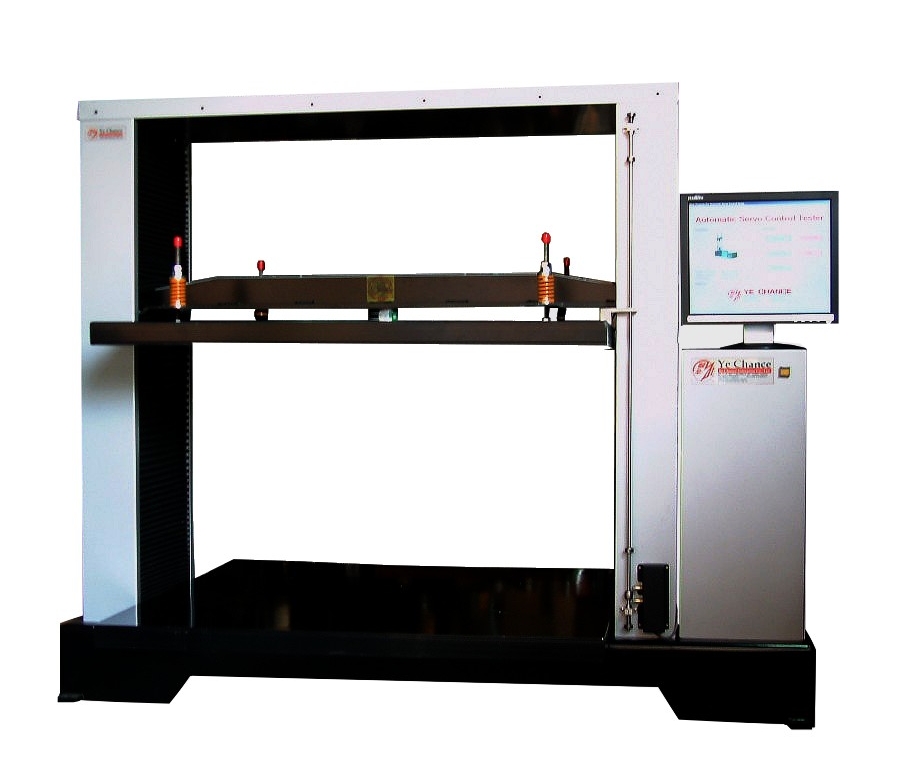

 Automatic Servo Control Carton Compression Tester

The servo control carton testing machine is one new testing machine hardware, it can use in various kinds of cartons compression and test while being servo.

The speed ranges of this testing machine are 1.0-300.0 mm/min, operated and revised the speed deviation automatically by the computer program. The electrical machinery system we used that can satisfy the computer servo control’s accurate circuit.



Technical Specification:

Capacity: 2 or 5 Tons ( 20KN or 50 KN)

Accuracy: +/- 1%

Test speed: 0 ~ 300 mm/min

Test space: 120 x 120 x 100 cm

Dimension:190 x 120 x 156 cm

Weight:670 kg

Voltage:220V/380V
