Technical Specification:

Model

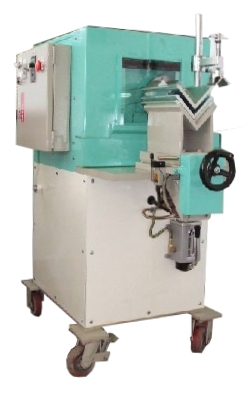

YC-CSG1S

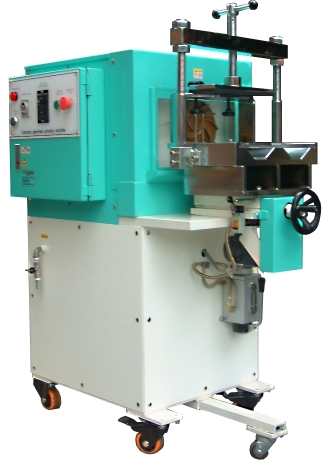

YC-CSG3S

Sample Size

150 x 300mm, 100x200mm cylinders

100mm cubic

150 x 300mm x 2, 100 x 200mm x 3 cylinders

 100mm cubic x 2

Grinding Precision

Plane and Parallel to within .05 mm

Grinding Feed

Manual and automatic

Automatic feed speed

3 mm/min

Feed Range

30 mm

Grinding Speed

220V 60Hz. 2000 r.p.m.

220V 50Hz.1660 r.p.m.

220V 60Hz. 2000 r.p.m.

220V 50Hz.1660 r.p.m.

Utilities Required

Water source required for coolant.

Diamond Grinding Wheel Dia.

175mm or 200mm

Power

220V or 380V, 3Phases
